SHAPE Composite Grip Camera Support

SHAPE Composite Grip Camera Support

295.95

GOT ONE TO SELL?

Have an old camera you don’t need anymore? Sell your camera today and get top market value.

Click for Quote

——————————————————————————————————

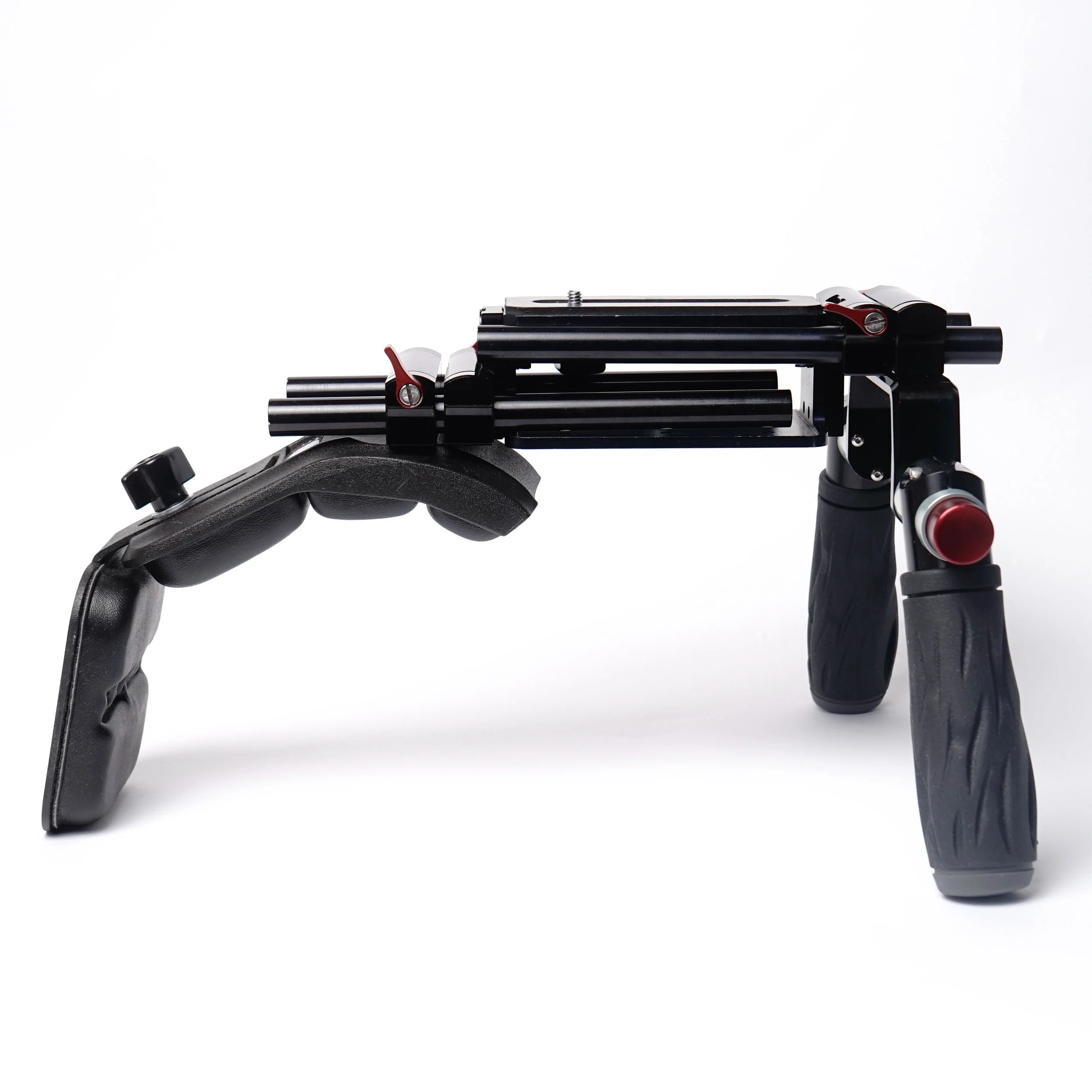

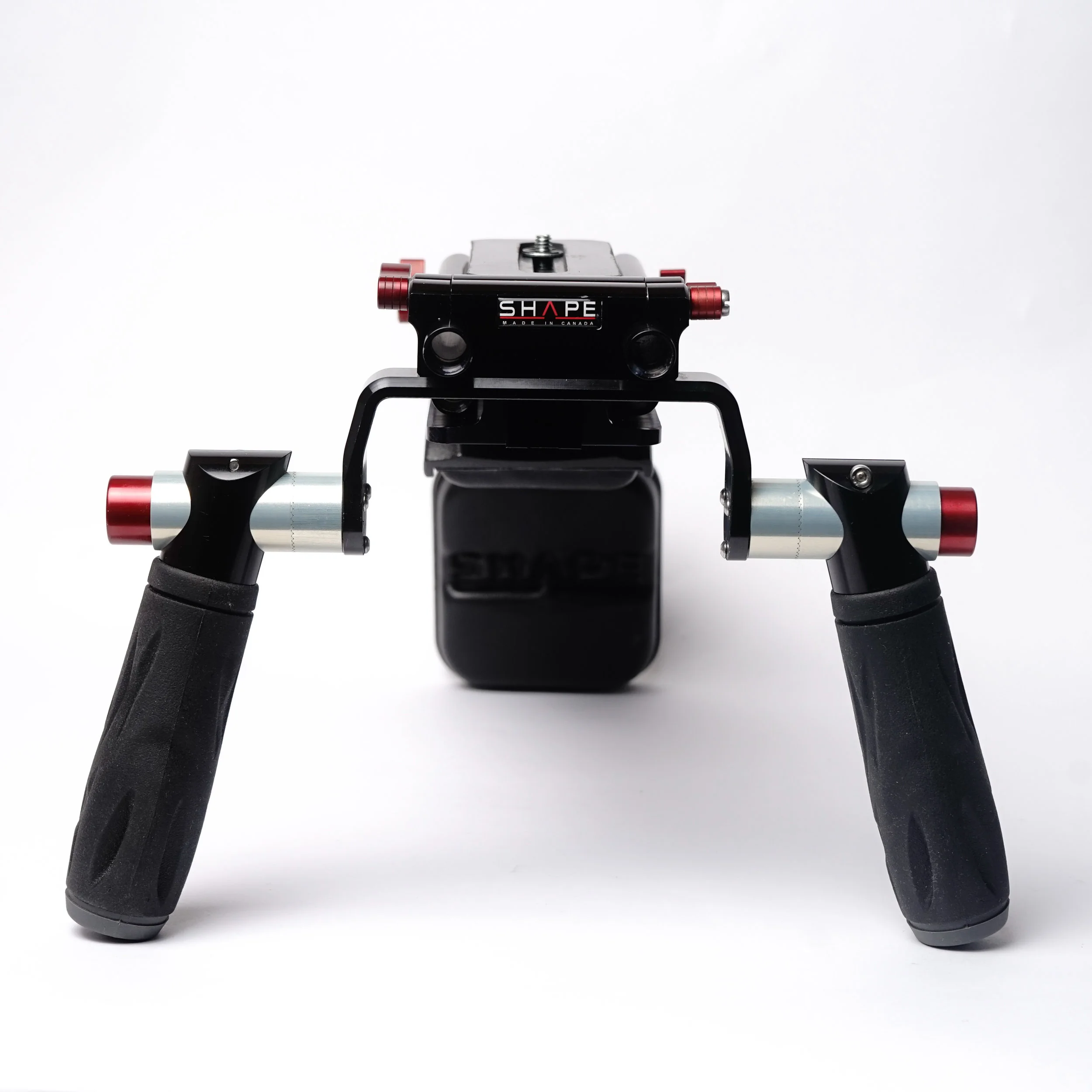

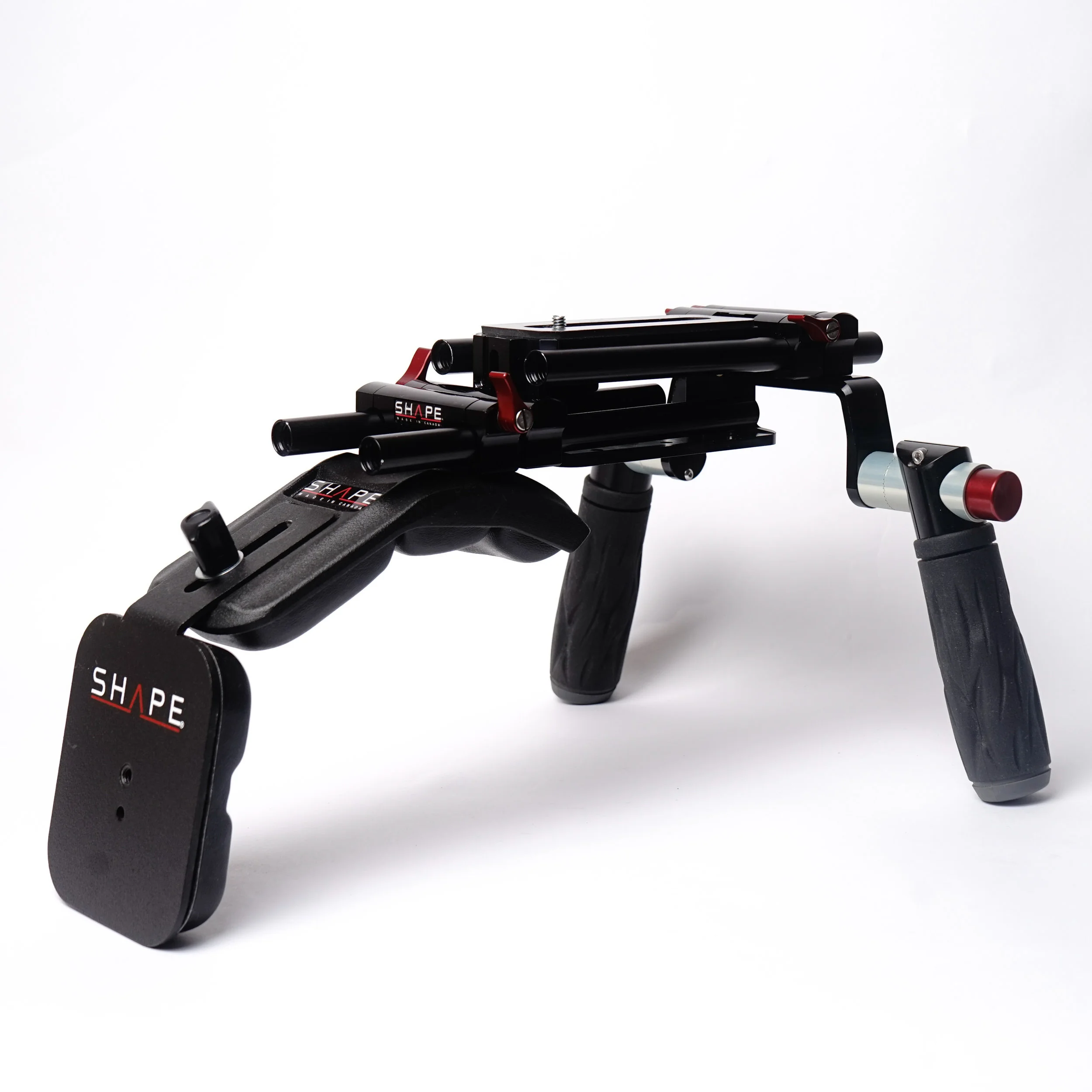

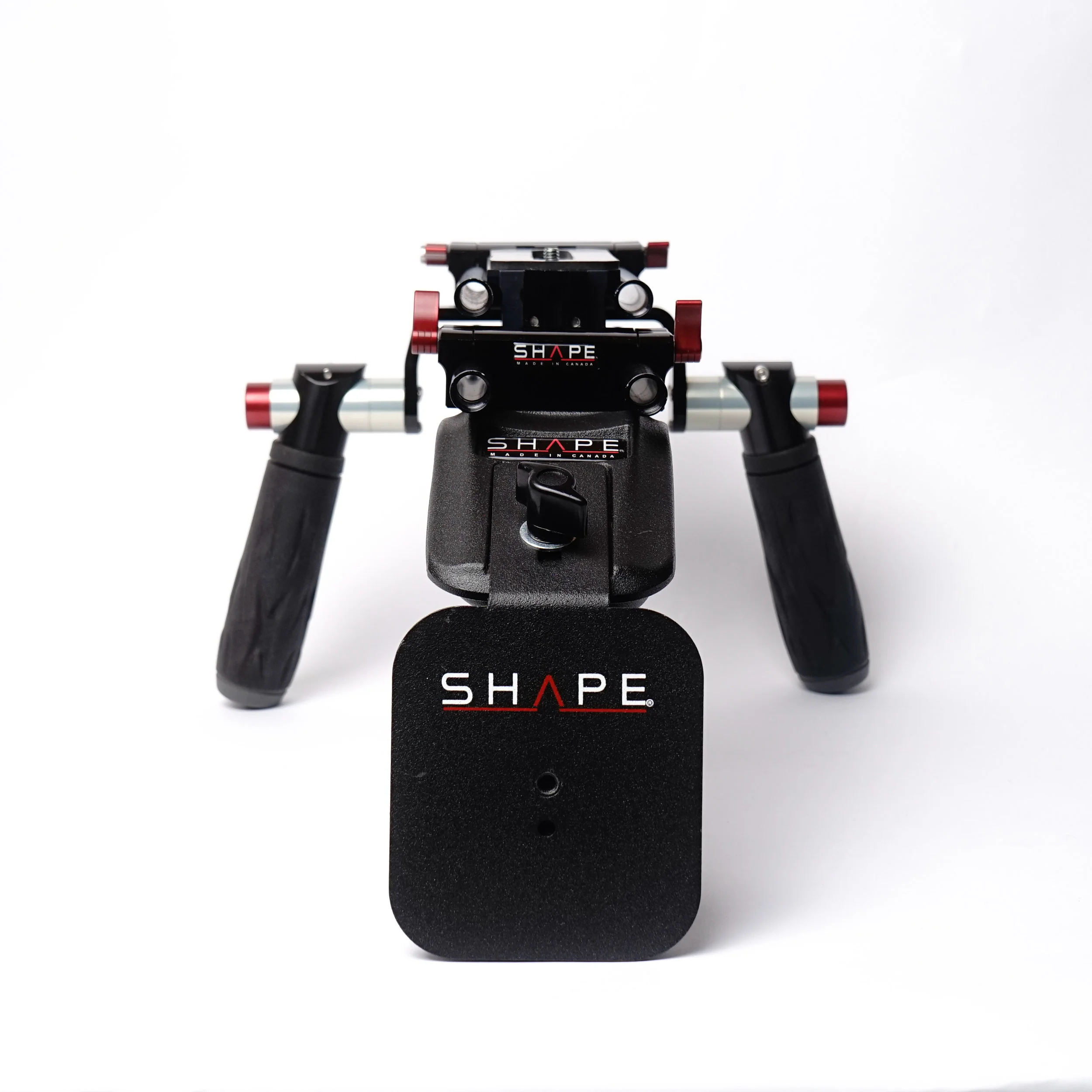

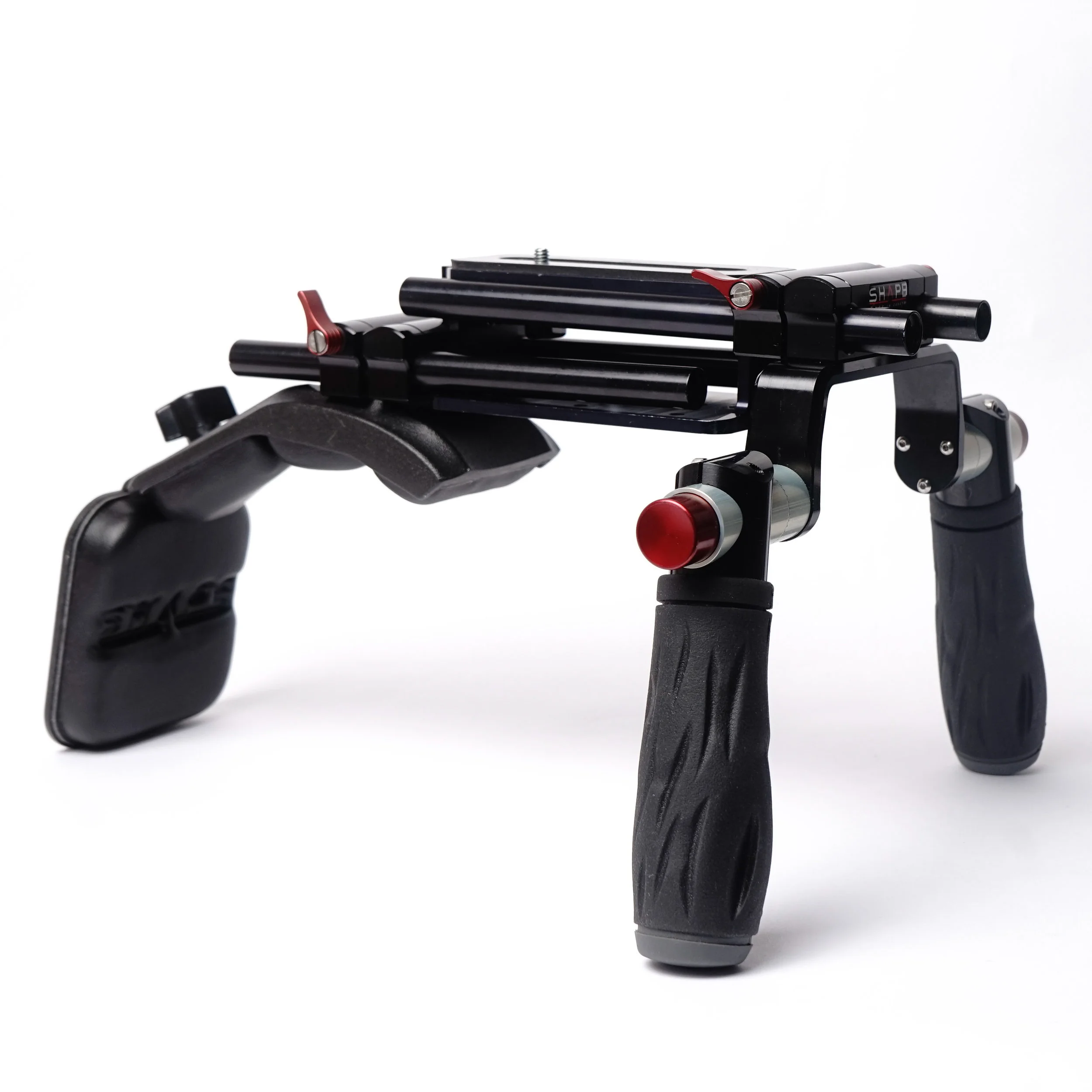

SHAPE Composite Grip Camera Support

Condition: Excellent

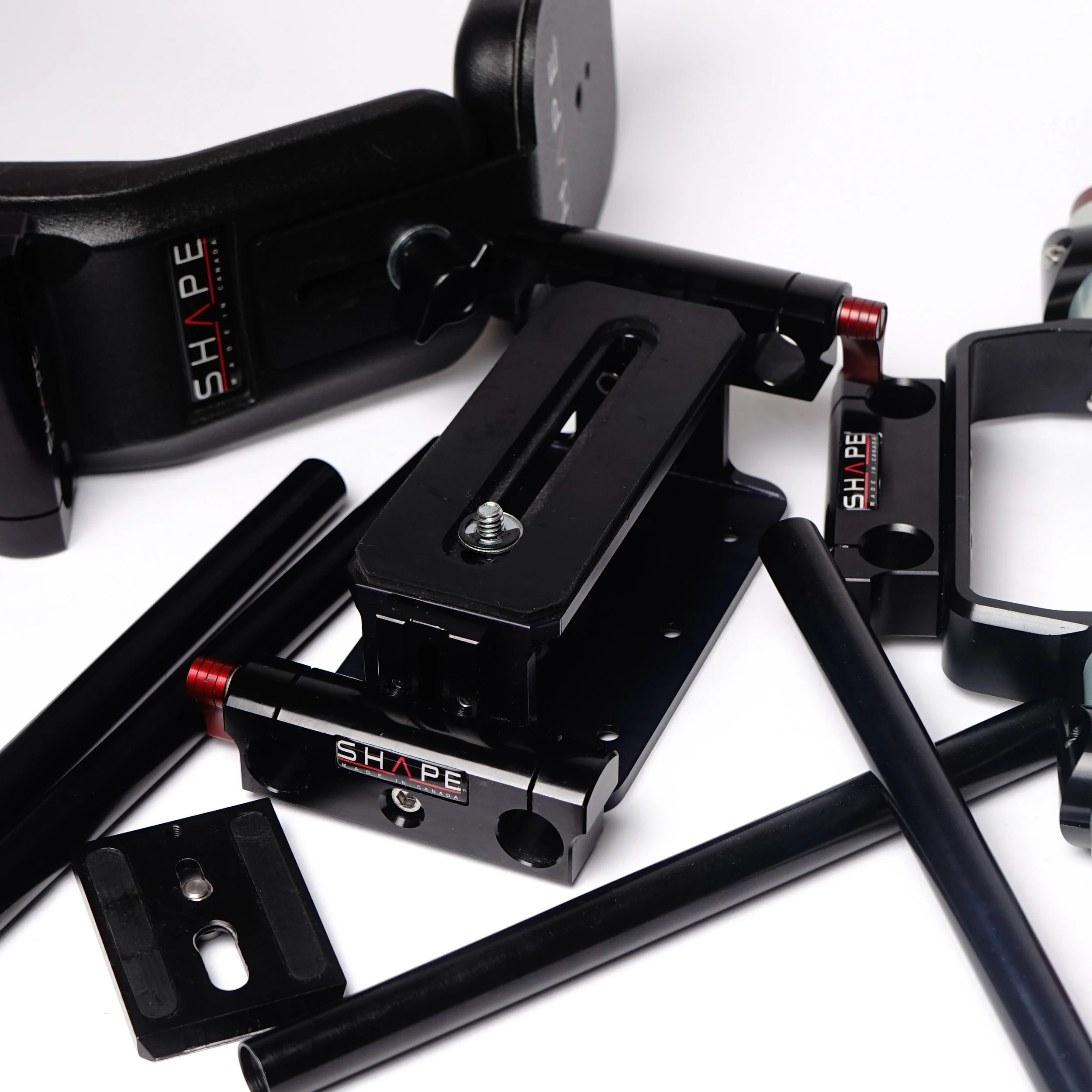

What’s included

  • Paparazzi Riser

  • Thumbscrew

  • 2 x Sliding Rod Block

  • 2 x Screws

  • 2 x Washers

  • 2 x Pair of 15mm Female - Female Rod (8”)

  • Quick Handle + Rod Block

  • Adjustable Composite Shoulder Pad

Product Highlights

  • Shoulder-Mount Camera Rig

  • Paparazzi Riser Baseplate

  • Height-Adjustable 15mm Rods

  • Quick Handle with 360° Rotation

  • Push Button Operation

  • Composite Shoulder Pad

  • Back Pad for Stability & Comfort

SHAPE Compogrip Overview

The Shape Composite Grip Camera Support is an adjustable, lightweight, and compact 15mm LWS shoulder mount rig for DSLRs and compact video cameras. The rig is built around the Paparazzi Riser baseplate, a pair of 15mm Sliding Rod Blocks, and a set of four 8" 15mm rods. The sliding rod blocks enable you to adjust the height of the rods to suit your camera setup. For shoulder mounted shooting, handles and a shoulder pad are included the mount onto the rods. The handles feature rosettes and SHAPE's patented spring-loaded push-button technology that lets you quickly adjust the angle of the grips on-the-fly with just the push of your thumb. The Adjustable Composite Shoulder Pad is height adjustable thanks to its own Sliding Rod Block. For additional support and comfort, a Back Pad is also included that attaches to the rear of the shoulder pad. When you need to go tripod-mounted, the Paparazzi Riser features 1/4"-20 and 3/8"-16 threaded holes at the bottom.

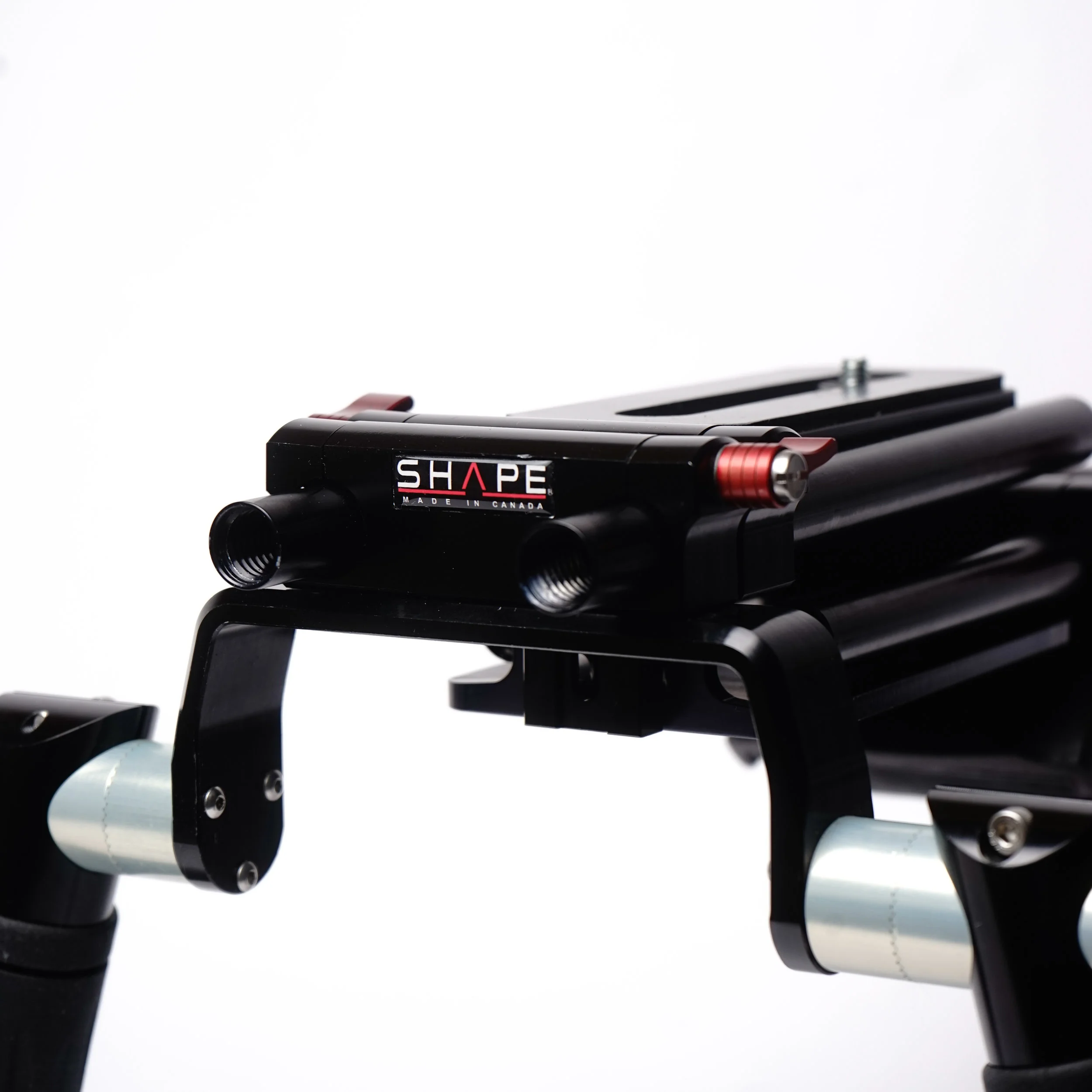

  • The Paparazzi Riser from SHAPE is a 2" fixed-height camera riser offering either parallel or perpendicular camera support. The riser's top surface includes a 4" sliding screw slot that enables the camera to be adjusted front-to-back or side-to-side, depending on the riser's orientation. This Paparazzi Riser features several 1/4"-20 and 3/8"-16 threaded holes. The hole located on the base is used to attach the riser to a camera support, while the front and rear holes can be used to attach various accessories such as a sliding rod block.

  • The Paparazzi Riser is suited for use with small camcorders and DSLR cameras. Constructed of CNC-machined, anodised aluminium, this riser is the common component of all SHAPE Composite camera support systems.

Features

  • Four-inch, fixed-height riser is compatible with small camcorders or DSLRs

  • Can be placed either parallel or perpendicular for camera placement centred on the support or offset to the right or to the left

  • Multiple 1/4"-20 and 3/8"-16 threaded holes for mounting the riser onto a camera support and for attaching accessories

  • Lightweight, durable riser made of CNC-machined anodised aluminium

Sliding Rod Block

The SHAPE Sliding Rod Block allows you to attach 15mm rods to select SHAPE gear and adjust them vertically to support different sized lenses and accessories.

Using supplied screws, it can be attached to the front of the PAPARAZZI RISER, CAMELEON I, SPIDER I, SUMO I, and other rigs/accessories that support the screw pattern. One ratchet knob tightens both optional rods in place.

Pair of 15mm Female - Female Rod (8")

The Shape Pair of 15mm Female - Female Rod (8") are anodised aluminium rods with 1/2"-13 threaded female extremities.

The rods are 8" (203mm) long and have a diameter of 0.59" (15mm). You can use the 15mm Female - Female Rods (8") with 15mm Male - Female Rod (4" / 101.6mm), 15mm Female - Female Rod (6" / 152.4mm), Rod Black, and the Sliding Rod Block.

  • Anodised aluminium rods with 1/2"-13 threaded female extremities

  • Rod Length - 8" (203mm)

  • Rod Diameter - 0.59" (15mm)

  • Compatible with 15mm Male - Female Rod (4" / 101.6mm), 15mm Female - Female Rod (6" / 152.4mm), Rod Black, and the Sliding Rod Block

Quick Handle + Rod Block

The Shape Quick Handle + Rod Block is a professional video stabilisation accessory with 2 camera handles, each providing an individual rotation angle of 360°. You can attach the handle to the camera platform using a simple screw knob. A simple push button located at the articulation allows easy attachment and removal.

Combined with the anodised aluminium Rod Block, the Quick Handle offers composite camera support for all 15mm rods. You can achieve precise positioning by sliding the Quick Handle along the rods and tightening the small red knob located on the Rod Block. With 2 screw-threaded holes, the Rod Block provides for attachment of components such as the Quick Handle.

Quick Handle

  • Provides professional video stabilisation with 2 handles

  • Each handle offers 360° individual rotation

  • Offers easy attachment/removal

Rod Block

  • Composed of anodised aluminium

  • Offers composite camera support for all 15mm rods

  • Provides precise positioning of the Quick Handle along the rods via the tightening of the small red knob

  • With 2 screw-threaded holes, the Rod Block provides for attachment of components

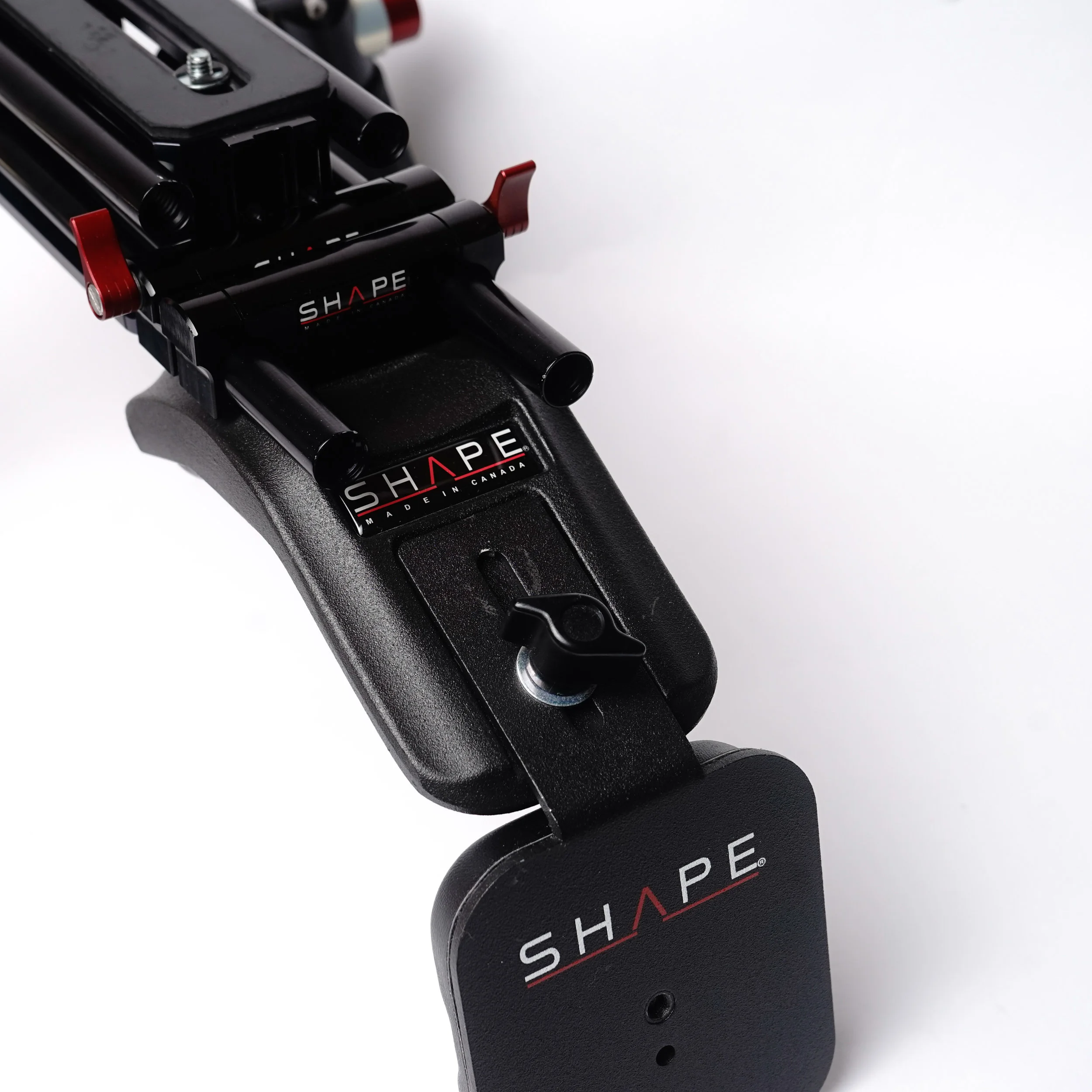

Adjustable Composite Shoulder Pad

The SHAPE Adjustable Composite Shoulder Pad is a core component of SHAPE's Composite series of camera supports. The pad rests on the camera operator's shoulder to transfer the weight of the camera and any accessories closer to the core of the body. The lightweight aluminum shoulder pad is padded for comfort.

Attached to the front of the pad, the included Sliding Rod Block enables the adjustment – up to 2.75 in (7.0 cm) – that allows the operator to set a pair of 15mm rods and at the proper vertical level.

The Adjustable Composite Shoulder Pad is compatible with several other camera rig components from SHAPE and, because it accepts standard 15mm rods, other manufacturers as well. You can attach a counterweight to the back of the shoulder pad to provide more support for the camera rig. The shoulder pad is recommended for camera rigs up to 15 lb (6.8 kg) if you're supporting it with dual rods or up to 7.5 lb (3.4 kg) if you're using a single rod, so it's perfect for heavy DSLR setups and lighter HD video camera rigs.

Back Pad

The Back Pad from SHAPE is a standard rig component included with most SHAPE camera rigs. Its design features a powder coated anodised aluminium plate and arm which are attached to a thick padding on the side facing the user. The pad is easy to both attach and remove from your rig, and it supports the SHAPE BOX attachment. Additionally, the pad's position can be adjusted to the user's preference – up to 2" vertically and 360° horizontally.
